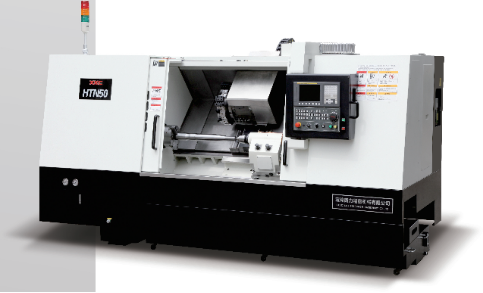

HTN50
Series CNC horizontal lathe
Control System
Driven by FANUC control systems that enable the lathes with great stability.
High Rigidity Spindle
The machine adopt spindle box type with high precision spindle bearing to ensure the accuracy of spindle precision beating<3um.
Hydraulic Turret
Hydraulic rotary cylinder with high speed and high accuracy combined With rigidand precise power chuck increase greatly heavy cutting and Tougn metal cutting capacity.
High Rigidity Servo Turret
High rigidity and accuracy servo turret 12 tools from ltaly, that change cutters with high intensity, high speed, stable, accurate, can substantially save processing time. Tool size:25mm &φ40mm.
High Efficiency Machining
Max. Speed of spindle is 4500rev/min. Rapid traverse rate of X and Zaxes is up to 20m/min. Auto parts feeder can be equipped to fulfill fast and efficient automation production.
Accurate Feeding
Each feeding axis is driven by servomotors through Japan THK precision ball screws. Machining accuracy is ensured and longtime accuracy is remained.
Machine Bed Construction
Hign rigldity meenanite cast iron 45 slant bed, easy chip removal, compact design, beautiful appearance.
MACHINE SPECIFICATION PARAMETERS
項目ITEM | HTN50(700/1000) | |
加工能力 Capacity | 最大的回轉直徑 Max. swing diaover bed | φ520mm |
滑板上面最大的回轉直徑Swing over cross slide | φ260mm | |
最大加工直徑 Max process diameter | φ380mm | |
最大加工長度 Max process length | 750/1000mm | |
主軸 Spindle | 主軸最高轉速 Max spindle speed | 4500rpm/min |
卡盤尺寸 Chuck size | 8寸 | |
主軸端部形式 Spindle nose type | A2-6 | |
主軸通孔直徑 Max spindle through diameter | φ62mm | |
主軸可通過棒料直徑 Through hole diameter | φ51mm | |
輸出功率(連續(xù)/30min) Spindle motor | 15KW/18.5KW | |
刀塔 Turret | 刀塔形式 Turret type | 伺服刀塔 Servo motor |
刀位數(shù) Number of stations | 12 | |
刀具換刀時間(one/full) Turret changing time | 0.26S(0.5S) | |
刀具尺寸 Tool size | 20×20/φ40mm | |
尾座 Tailstock | 尾座形式 Tailstock | 可移動液壓尾座 Hydraulic tailstock |
尾座錐孔形式 Tailstock quill taper hole | MT NO.5 | |
套筒直徑/行程 Tailstock sleeve travel | φ90mm/90mm | |
尾座最大移動量 Tailstock travel | 600/980mm | |
快移速度 Rapid feed | X/Z軸快進速度 Axis traverse | 20m/min |
X軸行程 X/Z axis travel | 220mm | |
Z軸行程 X/Z axis travel | 770/1020mm | |
控制系統(tǒng)system | Nc形式 Controller | FANUC Oi-mate TD |
冷卻系統(tǒng) Coolant system | 容積 Capacity | 160L |
冷卻泵電機功率 Coolant motor power | 180W | |
其它 Others | 中空液壓卡盤 Chuck | 8" |
中空液壓缸 Rotating hydraulic cylinder | 6" | |
電源容量 Power capacity | 15KVA | |
機床尺寸(長×寬×高) Floor Space | 2700×1650×1780mm | |
機床重量 Mass of machine | 約3500kg about 3500kg | |
