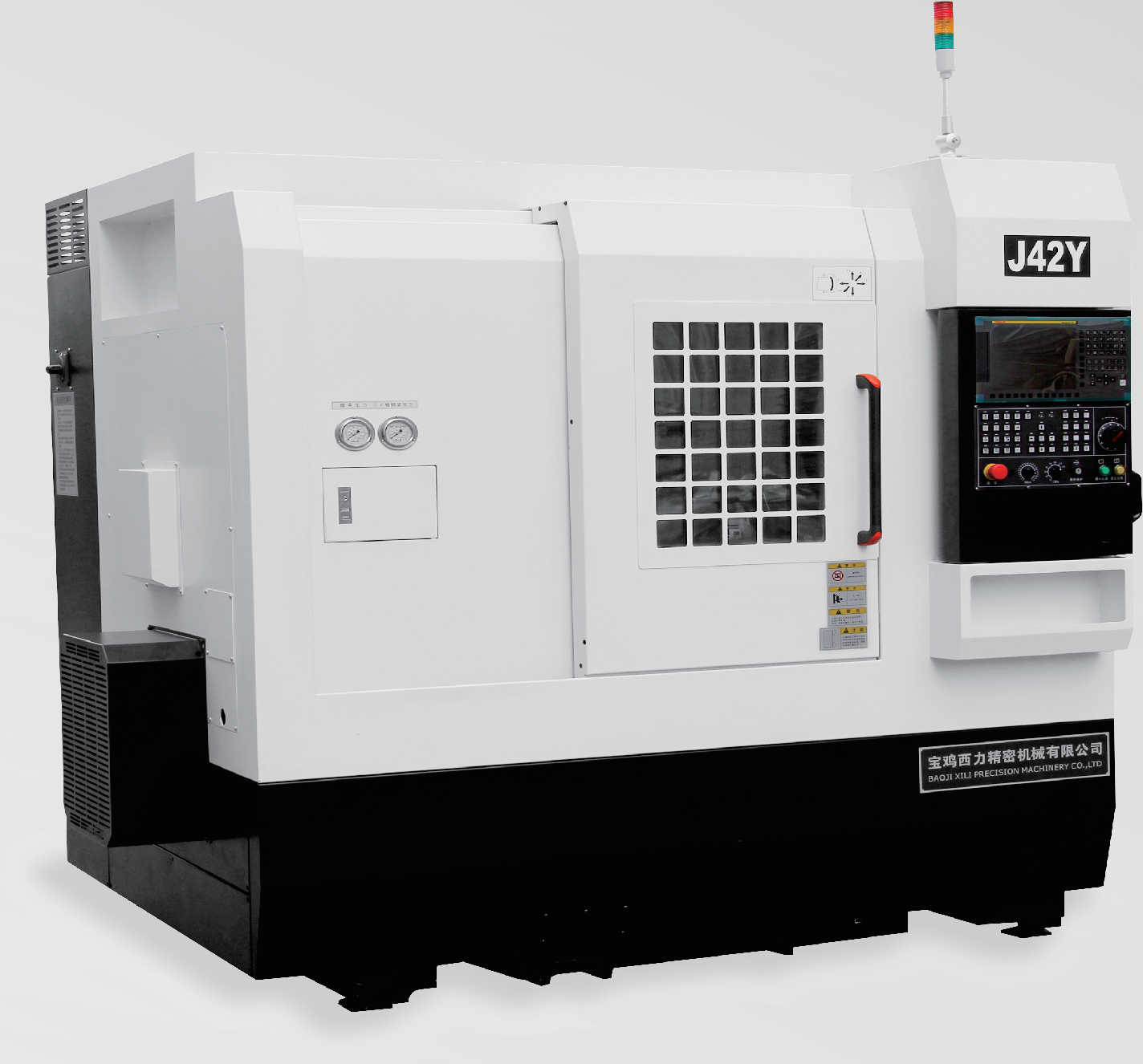

J42Y TURNING AND MILLING CENTER


J42Y

TURNING AND MILLING CENTER

High Precision, High Speed, High Stability

This machine tool adopts the form of a mechanical spindle. And after accurate dynamic balance correction, has good rotation accuracy and stability, strong vibration resistance. The standard configuration of C axis, the separation accuracy reaches 0.001, the spindle adopts high speed angular contact ball bearing +cylindrical roller bearing structure, with good rigidity and speedup to 5000 r/min.

Machine Host: High Rigidity, High Anti Vibration Structure

J42Y milling center adopts integral 30 inclined bed body structure, flat bed saddle, integral column, all adopt high quality cast iron, through the optimized structure design and process method, the machine tool has excellent rigidity, vibration resistance and precision.

Tools: Sixteen tool positions, accurate positioning

The J42Y turning and milling center adopts an eight station cutterhead, four + four power heads, with a total of 16 cutting positions for turning, milling, drilling, and boring, which can be expanded to a maximum of 20 cutting positions, meeting the processing needs of most parts in the market. One clamping can complete all turning, milling, drilling, and boring processes of parts except for flipping, greatly improving processing efficiency and part quality.


Optional configuration

5-inch/6-inch chuck automatic unloading device

★Parts conveyer

★Special configuration that meets user needs

MACHINE SPECIFICATION PARAMETERS

項目ITEM

J42Y

J42AY

加工能力

Capacity

最大的回轉直徑 Max. swing diaover bed

φ400mm

φ400mm

最大加工直徑 Max process diameter

φ200mm

φ200mm

最大加工長度 Max process length

200mm

200mm

主軸通孔直徑 Spindle through hole diamete

φ45mm

φ45mm

主軸

Spindle

主軸最高轉速 Max spindle speed

5000rpm/min

5000rpm/min

工件夾持方式 Clamp type

CL-42A5

CL-42A5

主軸端部形式 Spindle nose type

A2-5

A2-5

快移速度

Rapid feed

X/Y/Z軸快進速度 X/Y/Z Axis traverse

20/15/20m/min

20/15/20m/min

X/Y/Z軸行程 X/Y/Z Axis travel

350/200/400mm

450/260/400mm





刀具配置

Tool

configuration

配置形式  Configuration form

車銑鉆鏜 Turning, milling, driling, and boring

配置數量  Configuration quantity

側銑頭4+4,8工位臥式刀塔

Side milling head 4+4,8-station horizontal turret

刀方規格  Tool size

20x20

20x20

夾持規格  Clamping specifications

ER20

ER25

鏜銑刀規格

Boring andmiing tool specfications

φ13mm

φ16mm

刀具驅動功率 Tool driving power

FANUC 1.3KW

SYNTEC 1.2KW

雙電機 Dual motor

1.2/1.2KW

刀具最大轉速 Maximum tool speed

3000r/min

3000r/min

電機

Motor

主軸電機 Spindle motor

5.5/7.5KW

7.5/11KW

進給電機 Feed motor X/Y/Z

FANUC 1.8/0.75/1.2KW

SYNTEC 1.3/0.85/1.3KW

1.8/1.2/1.8KW

其它

Others

冷卻馬達 Cooling motor

550W

550W

電源容量 Power capacity

15KVA

15KVA

機床尺寸(長×寬×高) Floor Space

2200×1820×2075mm

2380*1930*2165mm

主軸中心高度 Spindle center height

1185mm

1250mm

機床重量 Mass of machine

3200kg about 3200kg

3500kg about 3500kg
